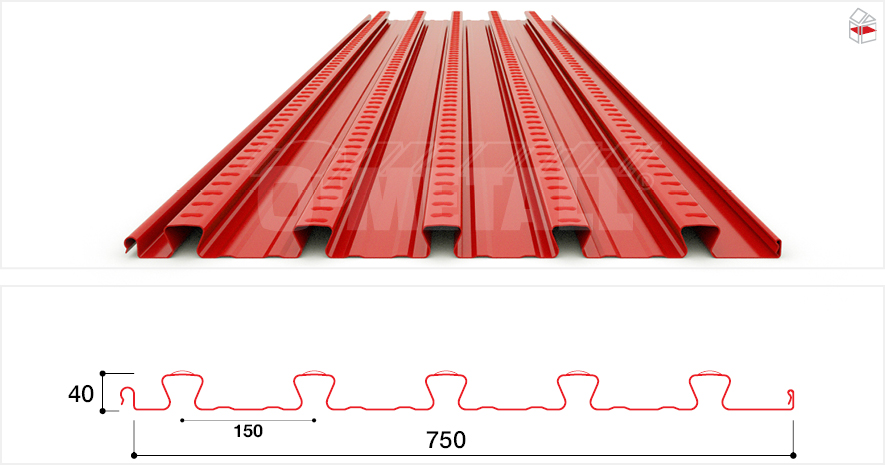

Dimensions on the profile sketch in millimetres
PRODUCT PROPERTIES
PROPERTIES | UNIT | 075 | 088 | 100 |
---|---|---|---|---|
MATERIAL THICKNESS | mm | 0.75 | 0.88 | 1.00 |
WEIGHT | kg/m² | 9.80 | 11.50 | 13.10 |
TECHNICAL PROPERTIES
MATERIAL | Heat-treated steel |
CORROSION PROTECTION | Fully galvanised |
COATING TOP | Galvanised only |
COATING BOTTOM | DU-coating |
EFFECTIVE WIDTH | 750mm |
CERTIFICATES/STANDARDS | Fire behaviour A1 according to EN 13501-1 |
